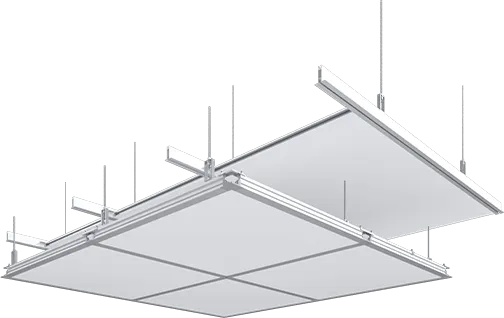

Cleanroom Ceiling System
Green Excel Cleanroom Ceiling System provides the most comprehensive variety of Cleanroom ceiling solution in the industry by combining engineered structural integrity and flexibility to meet the standards and specification of Cleanroom applications and customer requirement.
The systems are made of durable and corrosion-free extruded aluminium to provide long lasting and attractive finishes. Modular design of the system provides ease of installation.
Application
- Up to ISO 3 Class Cleanroom cleanliness
- Walkable & non-walkable ceiling
Benefits
- Engineered & innovative design
- Corrosion-free material
- Light and strong aluminium ceiling grid system
- Superior appearance
- Fast, flexible and easy installation
- Reusable and easy relocation
- Support & interface with variety of ceiling components
Technical
- Extruded aluminium alloy
- Natural anodized or epoxy powder coated finishes
- Standard panel size 1170mm x 1170mm
Variations
- Modular design for easy modification
- Utility penetration points
- Methods of suspension & support
- Customized sizes
Panel Type:
Panel infilled material:
- Aluminium Honeycomb
Main Components
Ceiling Tee
- HG70 Ceiling Tee
- Height: 70mm, Width: 55mm.
- Material: Aluminium Alloy (6063-T5)
Panel
- 30mm Thick Aluminium Honeycomb Cored Panel
- 0.5mm Polyester Coated steel skin, Anti- Corrosion primer
- Panel edge covered by 0.8mm galvanized sheet framework
Introduction
- The system is designed for walkable or to carry loads such as FFU
- System provides fast and easy assembly with solid zinc alloy cross connector with sprinkler head opening and one-way locking T-shape bolt, giving installer benefits of installation accuracy, quick and efficient
- The system is reusable and relocatable
- Up to ISO 3 Class Cleanroom cleanliness
HG70 System Structural Drawing
Aluminium Honeycomb Panel
A honeycomb panel is made of Aluminium Honeycomb material faced by two sides steel plates. Honeycomb panel is commonly used as ceiling and wall partition for cleanroom system.
Panel is designed to meet most demanding criteria as:
- Cost effective & engineering value
- Fast delivery and competitive cost
- Superior appearance
- Suitable for Cleanroom up to ISO 3
- Fast, flexible and easy installation
- Reusable and relocation system
